High Frequency wall sawing machine
The Electric High Frequency Wall Saw Machine a extremely strong high Frequency wall saw machine for cutting concrete, brick and other building material. High frequency wall saws are good for all kinds of concrete cutting. Compared to a normal electric wall saw the high-frequency wall saw is very cost-effective.
The high-frequency wall saw machine is easy to handle, and operate, and offers very good power. This concrete wall-cutting machine is powered by a hydraulic power pack and easily cut through heavily reinforced concrete.

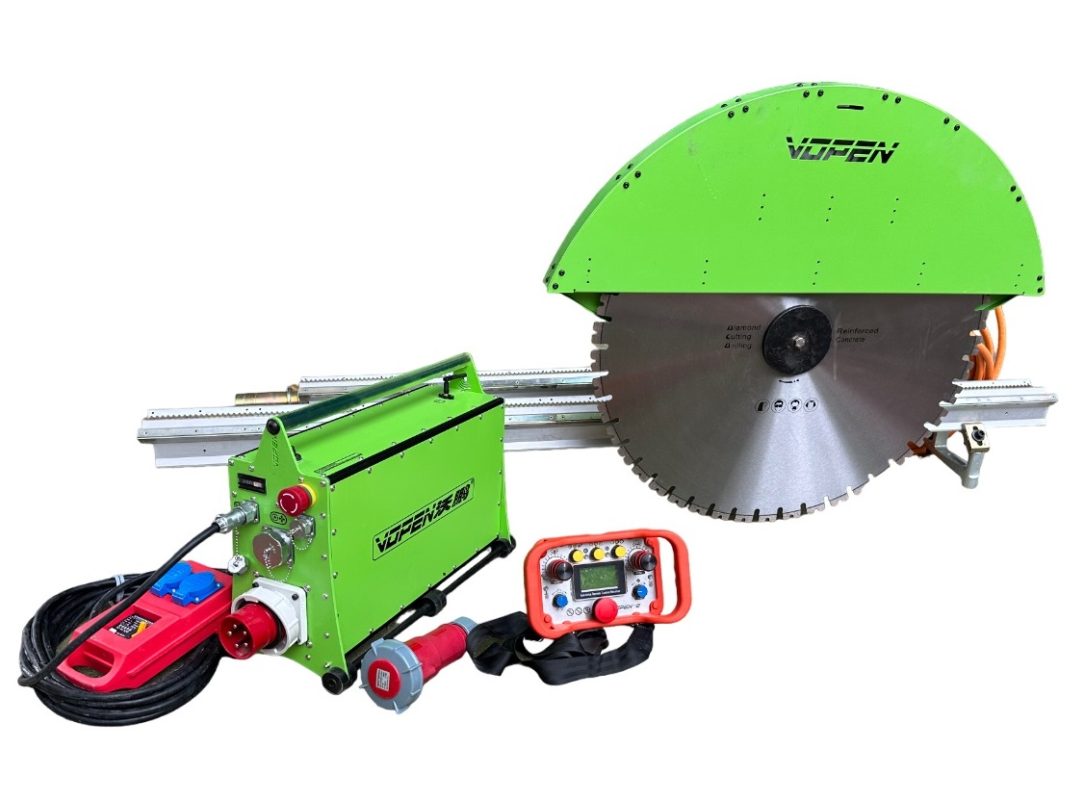

High frequency wall sawing Machine VE-5(22KW)
Model | Parameter details | Remarks Note |
Device power supply | Three-phase 380V/two-phase 220V/Extendable DC power supply | All three modes of power supply are feasible |
Three-phase 380V rated power | 3.7-22KW | Clutch adjustable load limit |
single-phase 220V rated power | 2.1-14KW | Clutch adjustable load limit |
Three-phase 380V motor speed | 0-7500 RPM | |
Single – Phase 22V motor speed | 0-4300 RPM | |
Main motor frequency | 500Hz | |
Feed motor | DC24V | |
Saw blade output torque | 288Nm | |
Wall saw head Weight | 29.5KG | |
22KW high frequency motor weight | 22KG | |
22KW driver weight | 17.5KG | |
Wireless remote control weight | 1.5KG | |
220V external waterproof mobile socket | 2KG | |
1.4m track weight | 12.6KG | Track to track connectable extensions |
2m track weight | 17.5KG | Track and orbit Connectable extensions |
800 wall saw blade weight | 14KG | full feed cutting depth 32cm |
1000 wall saw blade weight | 22KG | full feed cutting depth 42cm |
1200 wall saw blade weight | 31KG | full feed cutting depth 52cm |
1600 wall saw blade weight | 55KG | full feed cutting depth 72cm |
Type 800-1000 Ptective water cover Weight | 7KG |
