Our multi segments are designed to give an even cut in the thickness in slabs with no variations and chatter marks.

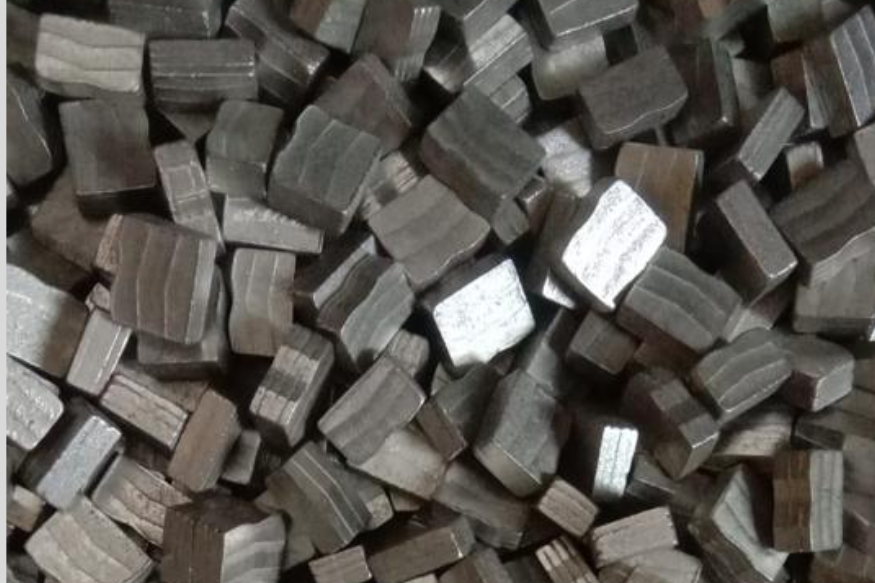

We supply Multi-Blade Segments for multi-blades of both Smaller to Bigger Blades (600mm to 2500mm) and ame Size Blades(blades mounted on Pedrini-like machines) Our segments are manufactured with utmost precision, so as to avoid any taper or deviation in the final cut of the block. We provide free cutting and long-life segments for the Multi-Blades. Our multi-segments are designed to give an even cut in the thickness of slabs with no variations and chatter marks. We usually provide segments of 15 mm in height. Our multi-blade segments are known for low power consumption. Contact Us

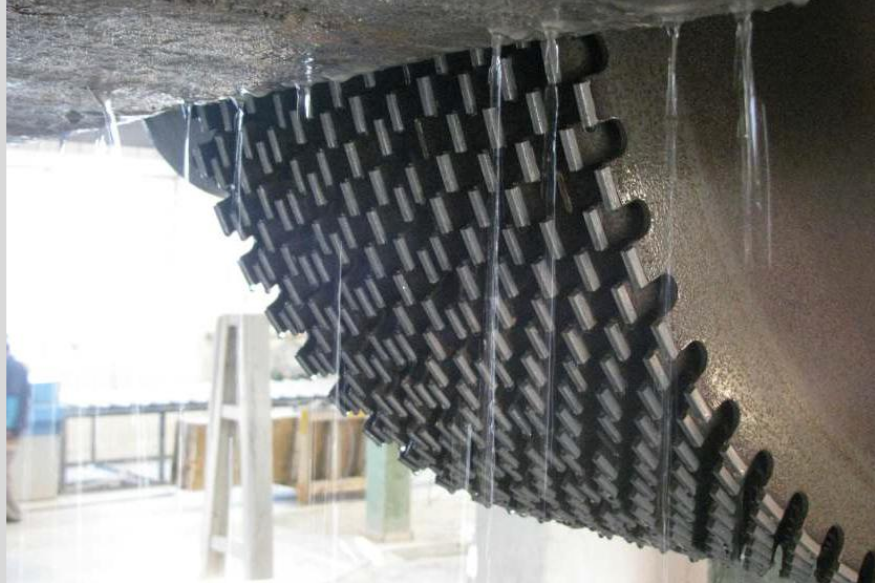

Multi Blade Saws with Diamond Segments ( Same sizes of blades )
|
Diameter (MM) |
Segments Size (MM) |
No. Of Slot |
|
900 |
24×6.6/6.0×12 |
64 |
|
1000 |
24×7.0/6.4×12 |
70 |
|
1200 |
24×7.5/6.5×12 |
80 |
|
1300 |
24×7.5/8.5×13 |
88 |
|
1600 |
24×9.5/8.5×13 |
108 |
Multi Blade Segments ( Different sizes of blades )
|
Combination of Blade (MM) |
Nos of Blades |
Steel core (mm) |
Segment Dimension (mm) |
|
Ø600 – Ø2200 |
5-10 |
5.5 |
24×6.4/7.4×15 |
|
Ø450 – Ø2450 |
5-21 |
6.5 |
24×7.4/8.4×15 |
|
Ø450 – Ø3000 |
7-10 |
7.2 |
24×8.4/9.4×15 |
