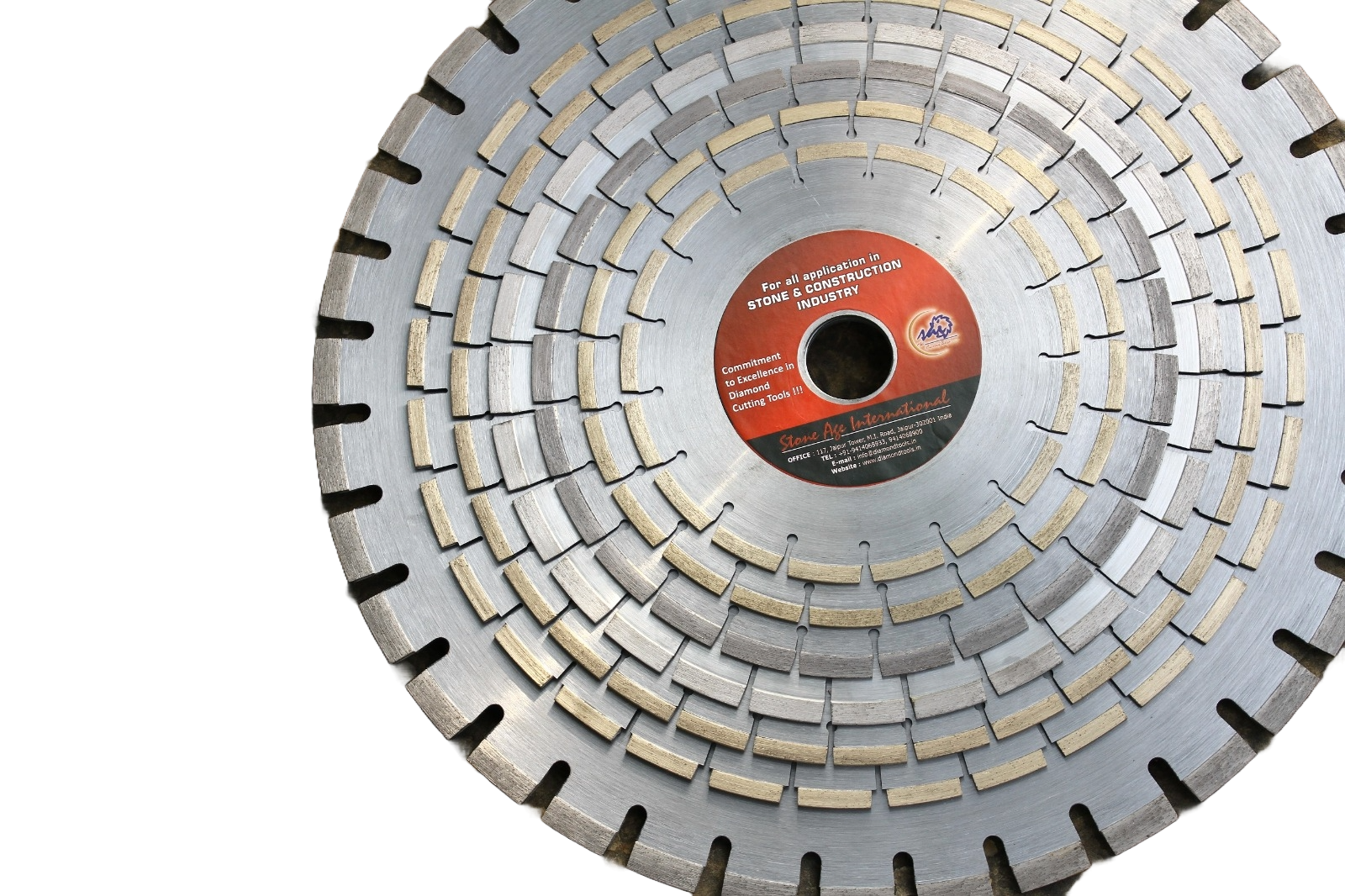

We manufacture these blades using high-quality metal matrix and high-quality diamond powder. The blades are always brazed, and the diamond height of our segments is between 10 to 15 mm and is as per the need of the customer. The blades can be offered either in silent cores or regular cores as per the requirement and can be in either key slot or Ɪ slot as per the requirements. Our blades are fast cutting without chipping and long life span. Segments can be customized as per the customer’s requirements. These blades are available from 350 mm diameter ( 14’ ) to 1000 mm diameter ( 40”). Bore size should always be specified while placing the order.
Diamond Circular Saw Blades are used for sawing all-natural stones such as Granite, Marble, Sand Stone, Lime Stone, Slate, Basalt, and Mica, etc. We are manufacturing premium and economical quality diamond blades using high-quality metal powders and synthetic industrial diamond powder, which ensures high quality and outstanding performance. We design these large circular saw blades keeping in mind the needs of the customer, so as to ensure the following:
> Easy and smooth cutting.
> Good cutting results and high efficiency.
> Long life span and stable performance.
> Fine finish without chipping.
We manufacture Sintered Segments that are brazed on normal or silent steel cores. We also supply loose segments for these blades for re-tipping.
STANDARD DIMENSIONS
| Saw
Diameter |
No. of Slots
(narrow slot) |
No. of Slots
(wide slot) |
Core Thickness (mm) |
Segment Length (mm) |
Cutting Width (mm) |
Height of Diamond Impregnation (mm) |
| 1000 | -s | 70 | 5.0 | 23/24 | 7.0 | 10-20 |
| 1100 | – | 74 | 5.5 | 23/24 | 7.0/7.5 | 10-20 |
| 1200 | – | 80 | 5.5 | 23/24 | 7.5/8.0 | 10-20 |
| 1250 | – | 84 | 5.5 | 23/24 | 7.5/8.0 | 10-20 |
| 1300 | – | 88 | 6.0 | 23/24 | 7.5/8.0 | 10-20 |
| 1350 | – | 88 | 6.0 | 23/24 | 7.5/8.0 | 10-20 |
| 1600 | – | 104 | 6.5/7.0 | 23/24 | 9.0/9.5 | 10-20 |
| 1800 | – | 120 | 7.0 | 23/24 | 9.5/10.0 | 10-30 |
| 2000 | * | 128 | 7.5/8.0 | 23/24 | 10.0/10.5 | 10-30 |
| 2200 | – | 132 | 8.0 | 23/24 | 10.5 | 10-30 |
| 2500 | – | 140 | 9.0 | 23/24 | 11.0/12.0 | 10-30 |
| 3000 | – | 160 | 9.0 | 23/24 | 12.0/12.5 | 10-30 |
| 3500 | – | 180 | 9.0 | 23/24 | 12.0/12.5 | 10-30 |
