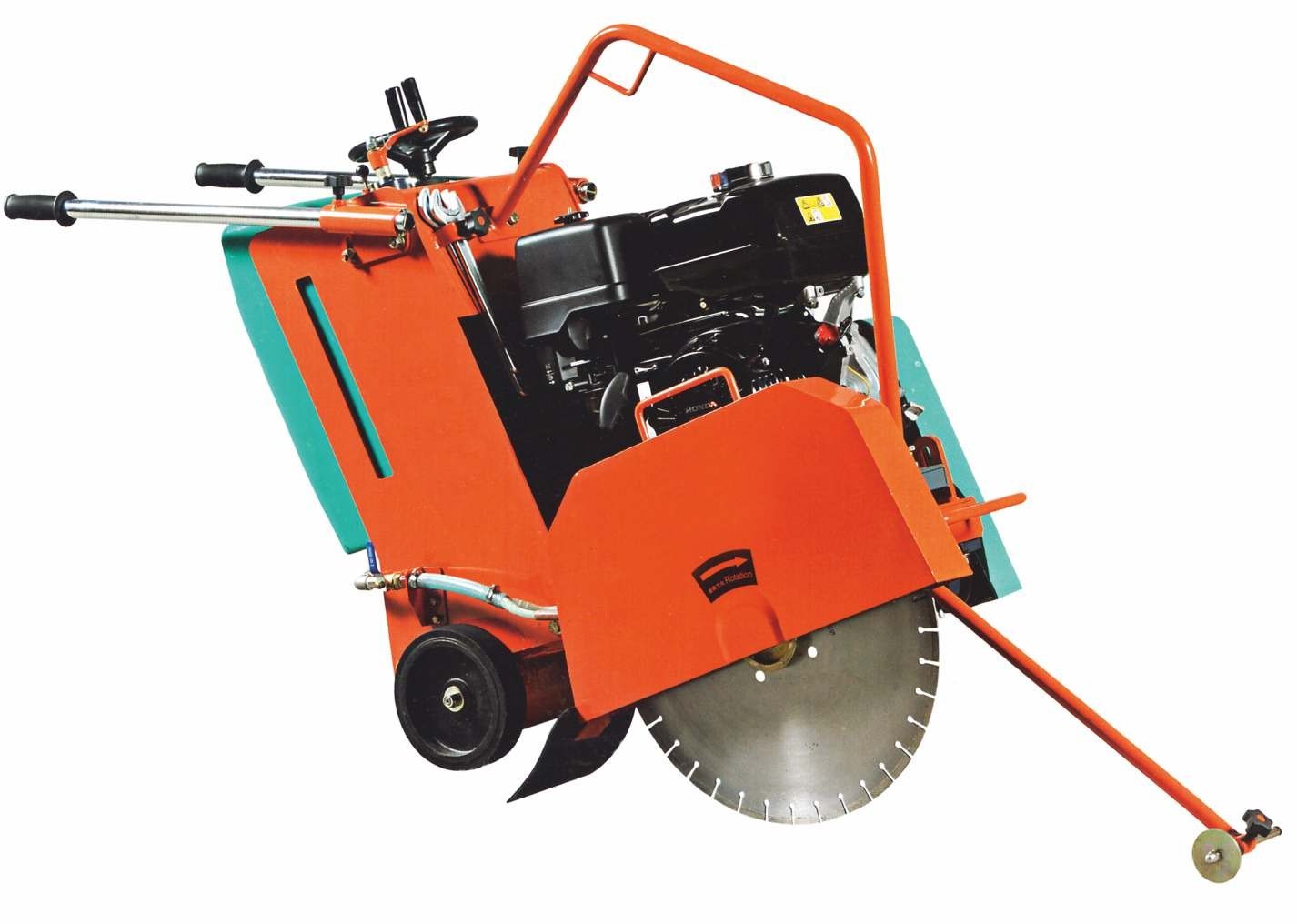

Arpran Industires Flat Saws are reliable,Productive machines ranging from small and agile to big and powerful.
Arpran Industries Flat Saws are reliable, Productive machines ranging from small and agile to big and powerful. Designed to secure maximum performance with a minimum of strain, all our flat saws provide class-leading power and torque at the blade shaft, which means greater productivity when deep sawing. Contact Us
Features
. Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life; extends blade life.
. Ergonomically designed, height-adjustable handles with comfortable grips
. Easy crank for raising/lowering Cutting depth
. The hinged front, the lift-up blade guard is designed to provide easy blade replacement
. Rustless water tank provides an optimum flow and volume of water to the blade
. Double water pipe for cooling both sides of the blade
. Semi-self-propelling for large model SA220, SA260
Technical Specification
| Model | SA220-1 | SA220-2 | SA220-3 | SA220-4 |
| Engine Type | Diesel Km186f | Petrol Engine | Robin EX40 | Honda GX390 |
| Power KW(hp) | 6.6(9.0) | 9.6(13.0) | 10.3(14) | 9.6(13.0) |
| weight kg (Ibs) | 161(354) | 145(319) | 146.5(322) | 145(319) |
| Max. Cutting Depth (cm) | 20 | 20 | 20 | 20 |
| Blade Size (cm) | 35-50 | 35-50 | 35-50 | 35-50 |
| Depth Adjustment | Handel Rotation | Handel Rotation | Handel Rotation | Handel Rotation |
| Driving | Semi-Self Propelled | Semi-Self Propelled | Semi-Self Propelled | Semi-Self Propelled |
| Water Tank Capacity (Ltrs) | 46 | 46 | 46 | 46 |
| Weight | 161 kg |
|---|
