Wall Cutter is Mainly Used for cutting narrow grooves on the walls of the reinforced concrete. It also can also be used for transformation, reinforcement and the design change of the old building. In addition, the wall cutter can cut the door, Window and the lift with a result of no damage, and also saves time, resource and expense.
Our cutting machine is using the heavy industry double insulation and power engine with reducer, which have low failure rate besides long service life and the saves maintenance cost. The special mechanical clutch protection device effectively avoids the damage of the machine and personnel. The machine has manual and automatic cutting control device, which can accelerate the construction speed and also reduces the labour of operator.
Features
. Wall sawing blades can be of different diameter, as per the requirement of the customer and the depth to be cut in the wall.
. Wall sawing is done with the use of a circular saw blade and is an application which requires special care. These blades require special protection and are manufactured with precise requisites.
. wall sawing employs a circular blade on a track-mounted blade on a track-mounted machine. The track is attached to vertical walls or steep inclines, or floors, which will not permit the use of flat saws. Wall or track sawing is typically specified to cut precise dimensional door, vent and window openings. Straight as well as bevel cuts are possible with the wall saw. The wall saw is also an excellent choice for creating precise openings in any concrete structure.
. The Diamond wall saw blade consists of a circular steel core with diamond segments attached to the periphery. The blade is mounted on the spindle of the wall saw. The spindle runs along the wall saw track that is typically bolted to the cutting surface. The power source for a wall saw system is either hydraulic, air or electric. Wall saw blades can range anywhere from 450mm till 1800mm.

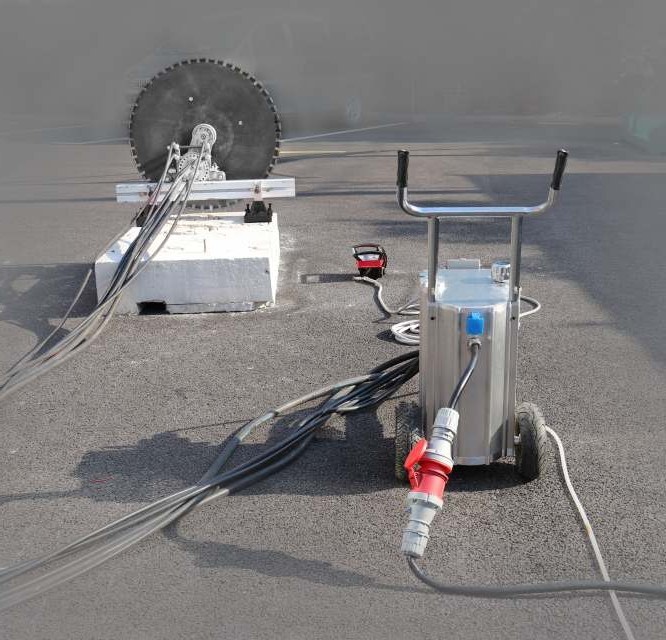

HYDRAULIC WALL CUTTER POWER UNIT
| product Model | KCY-HDD-39 | KCY-HDD-45 |
| Rated Input Power | 30(KW) | 43(KW) |
| Hydraulic pump from | Gear | Gear |
| Hydraulic pump quantity | 3 | 3 |
| Motor From | 3 Phase Water Cooling | 3 Phase Water Cooling |
| Rated frequency | 50/60Hz | 50/60Hz |
| Current Overload | 47(A) | 63(A) |
| Voltage socket(16A) | 1(250V) | 1(250V) |
| Length | 518mm | 518mm |
| Width | 320mm | 320mm |
| Height | 675mm | 675mm |
| Gross Weight | 160Kg(With oil) | 170kg(With Oil) |
| Digital Remote Control | Digital Remote Control | |
| Optional | Frequency Conversion Control | Frequency Conversion Control |
FULL HYDRAULIC WALL CUTTER
| product Model | KCY-KD-20 | KCY-KD-22 |
| Max Saw blade dia | 1800mm | 2200mm |
| Max Cutting Depth | 815mm | 1015mm |
| Max Start blade | 1000mm | 1200mm |
| Saw blade mounting form | Quick installation | Quick installation |
| Saw blade arbor dia | 60mm | 60mm |
| Cantilever angle | 360 | 360 |
| Torque force | 340Nm | 340Nm |
| Speed 1st | 590rpm | 590rpm |
| Speed 2nd | 850rpm | 850rpm |
| Speed 3rd | 1020rpm | 1020rpm |
| Speed 4th | 1300rpm | 1300rpm |
| Cutting motor weight | 27Kg | 26Kg |
| 130mm,6xM8 | 130mm,6xM8 | |
| Saw Blade base | 110mm,6xM10 | 110mm,6xM10 |
| 108mm,6xM10 | 108mm,6xM10 |
